VL-4 (3 Trays), 6.62″ O.D. x 3.5′ Mast w/ Pad (CPI Satcom)

Contact Us For Pricing
- Supports CPI Satcom 2.4m Antennas
- Shipping Weight: 700 lbs
- Shipping Dimensions: 76″ L x 24″ W x 34″ H
SKU: BRD109
Tags: 2.4m, Antennas, Baird, Mount For CPI Satcom, Non-Penetrating Roof Mounts, VL-4-(3-Trays)
- Description
- Product Information
- Support Documents
Overview

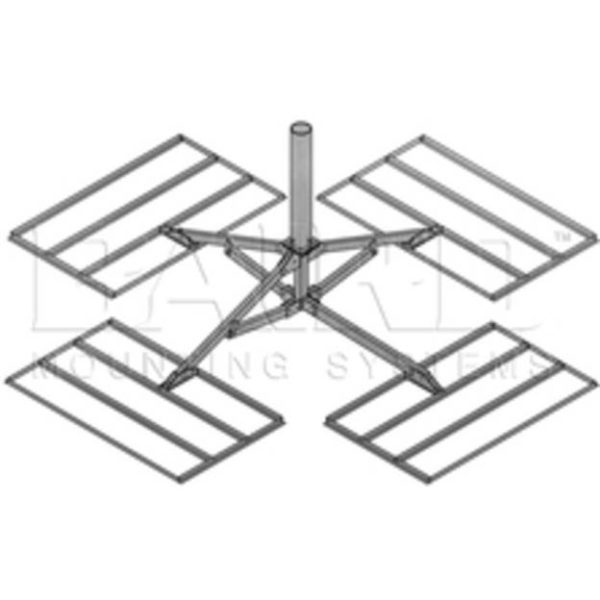

The Baird VL-4 (3 Trays) non-penetrating mount is designed with a dropped leg to mount satellite antennas at low elevation angles.
The VL-4 is used with all major brands of 2.4M satellite antennas, including the Prodelin 1244, Prodelin 1251 and Skyware Global (Raven) 2.4M antenna models.
Details
- Supports CPI Satcom 2.4m Antennas
- Shipping Weight: 700 lbs
- Shipping Dimensions: 76″ L x 24″ W x 34″ H
Part Number / Description | |
---|---|
VL4-T-662x3-RP | Non-Pen Mount, 3 Trays Per Leg, 15.6' x 15.6' Footprint, 6.62" O.D. x 3' Mast w/ Rubber Roof Pad |
VL4-T-662x42-RP | Non-Pen Mount, 3 Trays Per Leg, 15.6' x 15.6' Footprint, 6.62" O.D. x 42" Mast w/ Rubber Roof Pad |
Product Information | |
Application: | Roof-Top or Ground |
Type: | Non-Penetrating, Flat Surface |
Uses: | Satellite up to 2.4M Some Satellite up to 3.1M Wireless Other Applications |
Footprint: | 15.6' x 15.6' = 244.6 sq ft |
Finish: | Hot Dip Galvanized |
Available Options: | 1 Tray Per Leg 2 Trays Per Leg 3 Trays Per Leg Penetrating Feet (No Trays) |
Satellite Mast Sizes: | 6.62" O.D. Up to 42" (Mount Height = 5.7') Wireless / Other |
Application Mast Sizes: | 4.00" O.D. to 4.50" O.D. 3.0' to 8.0' Height (Mount Height = 5.2' to 10.2') |
Ballast: | Up to 96 Standard Concrete Blocks (8" x 8" x 16") |
Shipping: | Freight Pallet or Crate |
Warranty: | 10 Year Product Warranty |
Quote Request - VL-4 (3 Trays), 6.62" O.D. x 3.5' Mast w/ Pad (CPI Satcom)
