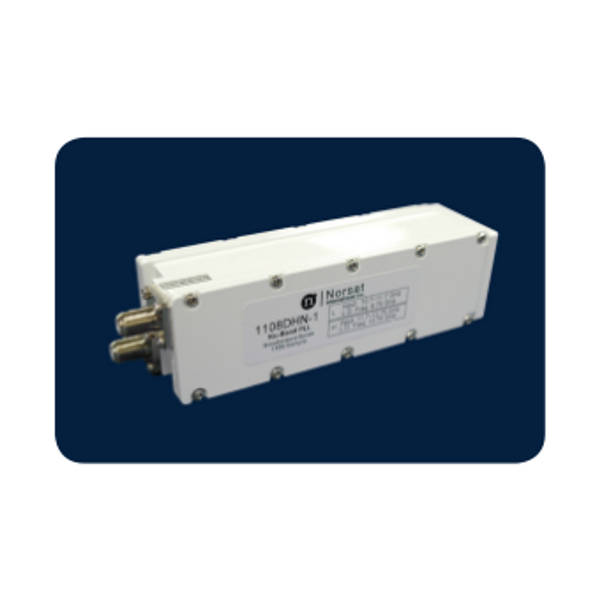

Overview
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.
Details
- Noise figure: 0.8 dBm
- L.O. stability: ± 10 kHz to ± 25 kHz
- LO Phase Noise: -75 dBc at 1 kHz, -85 dBc at 10 kHz, -95 dBc at 100 kHz
- Gain: 55 dB
- P1dB: +6 dBm
- DC Power: 18 V
- Current: 300 mA
- Input Waveguide: WR-75
- Output: F-connector (75 ohm), N (Optional) (50 ohm)
- Dimensions: 150 x 42 x 40 (L x W x H)
- Weight: 300 g
- Operating Temperature: -40 ~ +60˚C
