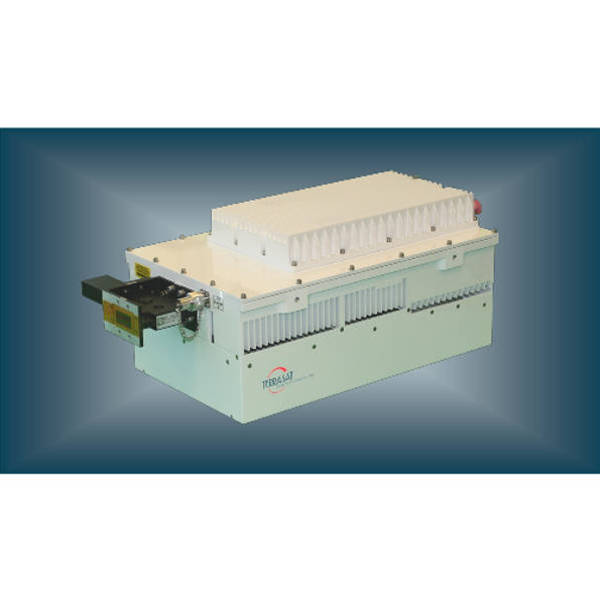

100W – 175W X-band HP IBUC

IBUC X-band HP 100W-175W
Terrasat

100W – 175W X-band HP IBUC

Wholesale Distributor

Contact Us For Pricing

  • TCP/IP HTTP with embedded Web pages
  • SNMP
  • TELNET through TCP/IP
  • FSK through TX IFL cable
  • RS232/485 serial port
  • Hand-held terminal

Select your wattage:

SKU: TRS122 Tags: , , , ,
Clear
Add to quote
  • Description
  • Technical Specifications
  • Support Documents

Overview

The revolutionary IBUC has advanced features to take your network to new heights.

IBUC offers significant benefits:

  • Low terminal cost
  • Simple design and installation
  • Superior RF performance
  • Simplified 1+1 configuration

New interfaces connect you to extensive M&C facilities for network management or local access. This powerful new M&C enables:

  • Trouble-free commissioning with easy, point-and-click installation/configuration
  • Continuous verification of performance with time-stamped alarm history
  • Simplified monitoring of terminal status

Details

  • TCP/IP HTTP with embedded Web pages
  • SNMP
  • TELNET through TCP/IP
  • FSK through TX IFL cable
  • RS232/485 serial port
  • Hand-held terminal

Frequency range
RF 7900 to 8400 MHz
IF 950 to 1450 MHz
Input
VSWR / Impedance 1.5:1 max / 50 Ohm
Input Connector Type N female (50 Ohm)
Input Connector options Type F (75 Ohm), TNC (50 Ohm)
Input power detector range -55 to –20 dBm
Gain
Small Signal Gain (L-band to RF) with attenuator set to 0 dB
100 W 81 dB min
125 W 82 dB min
150 W 83 dB min
175 W 83 dB min
Attenuator range 16 dB variable in 0.1 dB steps
Gain flatness
Full band 4 dB p-p max
36 MHz 1.5 dB p-p max
1 MHz 0.25 dB p-p
Gain variation over temperature
Open loop 3 dB p-p max
With AGC 1 dB p-p max
RF Output
Interface CPR-112G
VSWR < 1.3:1 max
Rated output power (P1dB)
100 W +50 dBm min
125 W +51 dBm min
150 W +51.8 dBm min
175 W +52.4 dBm min

IMD3 (2 carriers, 3 dB TOBO) -27 dBc max
Level stability with ALC ±0.5 dB
Output power detector range Rated power to –20 dB
Power reading accuracy ± 1.0 dB max.
Harmonics -60 dBc max.
Output Noise Power Density
TX Band < -75 dBm/Hz
RX Band (with RX reject filter) < -165 dBm/Hz

Mute -70 dBc max.
AM-PM Conversion < 3.0 deg/dB @ rated power
Group Delay
Linear 0.03 ns/MHz
Parabolic 0.003 ns/MHz2
Ripple 1 ns p-p over any 36 MHz
SSB Phase Noise
10 Hz
  External ref
  IBUC
-115 dBc/Hz
-55 dBc/Hz
100 Hz
  External ref
  IBUC
-140 dBc/Hz
-80 dBc/Hz
1 kHz
  External ref
  IBUC
-150 dBc/Hz
-90 dBc/Hz
10 kHz
  External ref
  IBUC
-155 dBc/Hz
-95 dBc/Hz
100 kHz
  External ref
  IBUC
N/A
-100 dBc/Hz
1 MHz
  External ref
  IBUC
N/A
-110 dBc/Hz
External Reference (multiplexed on TX I FL)
Frequency 10 MHz
Level -12 to +5 dBm
Internal Reference - optional
Local Oscillator Frequency
Non-inverting 6950 MHz
Monitor and Control
Ethernet (HTTP , Telnet, SNMP ),
RS232/485, Hand-held Terminal via MS-type connector,
FSK multiplexed on TX I FL.
Environmental
Operating temperature -40oC to +55oC
Relative humidity 100% condensing
Altitude 10,000 ft., (3,000 m) ASL
Mechanical
Size 19.5x10x7.8 in.
495x254x198 mm
Weight 32 lbs, 14.5 kg DC powered
33 lbs, 15 kg AC powered
(View our PDF Datasheet for more information)


IBUC X-band HP 100W-175W Datasheet PDF
