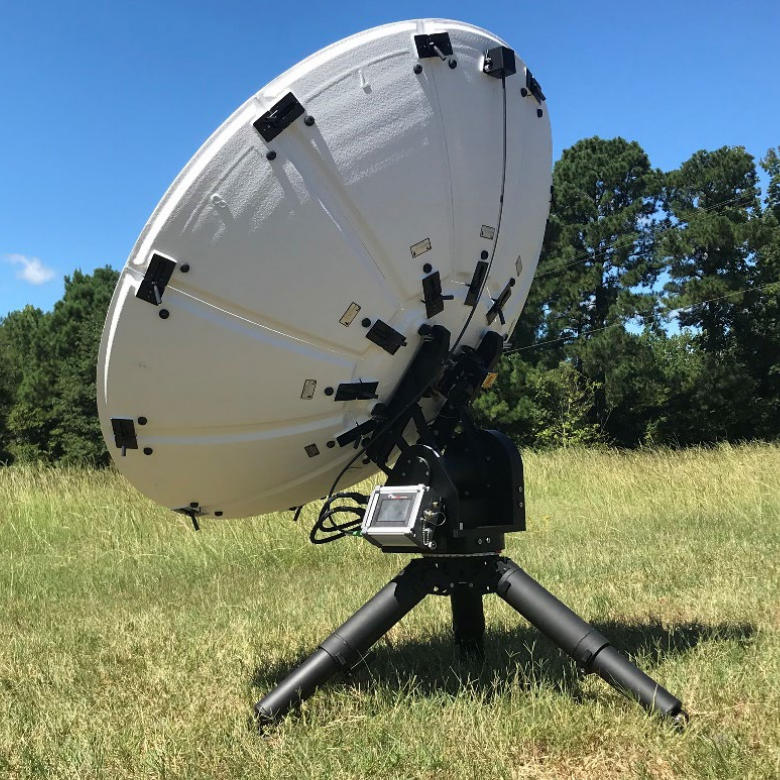

The Sat-Lite Technologies Model 1328 Avion Manual flyaway antenna and Model 1338 Avion Motorized flyaway antenna is highly portable and designed to meet IATA weight and dimension requirements for checked baggage on airlines. The antenna features Sat-Lite’s unique 11-piece segmented carbon fiber composite reflector designed for unmatched performance. Assembly time for either antenna is less than 15 minutes. The elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user when pointing and peaking on a satellite.
In addition, the antenna is designed to meet international performance specifications for multiple applications. Multiple feed and packaging configurations can be supplied for a specific requirement that include low and high power amplifier configurations for each frequency band.
- Ships in 2 Ruggedized All Weather IATA Compliant Cases
- Intelsat and Eutelsat Compliant
- Multi-Band Configurations
- 11 Segment Carbon Fiber Precision Reflector
- Compact Pedestal featuring easy point and peak control
- High Gain / Low Cross Pol Design
- Motorized Compact Controller using DVB Receiver or Modem for Automatic Acquisition
