Challenger 6.3m C, Ku, X-Band Receive-Only Earth Station

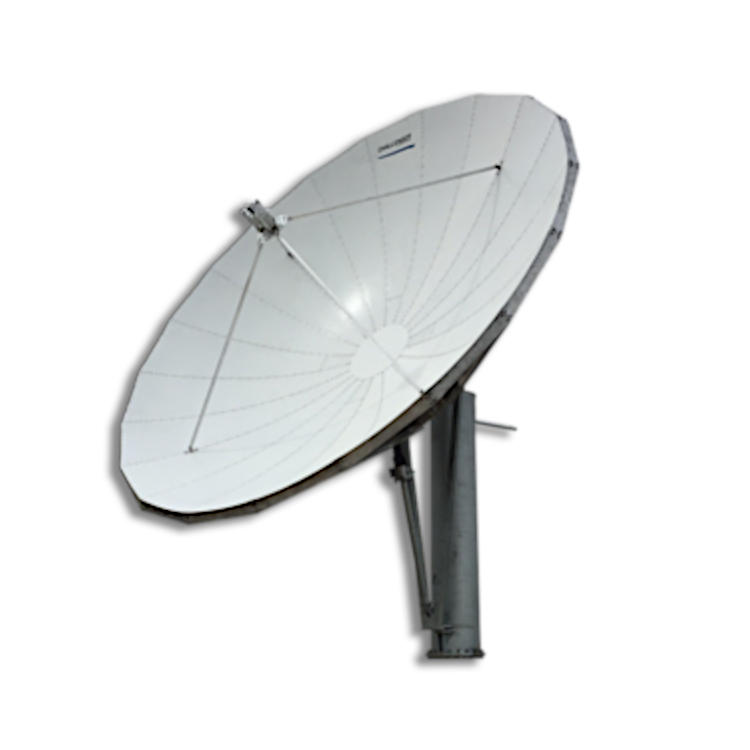

The Challenger 6.3m Receive-Only Earth Station is a high-performance, large-aperture antenna designed for teleport, broadcast, and ground station applications. Supporting C, Ku, and X-band frequency reception, it delivers high gain, low noise, and 360° polarization rotation.
This RX-only system features a precision stretch-formed aluminum reflector mounted on a hot-dip galvanized steel pedestal. Its rugged construction is rated for up to 125 mph survival wind speeds, while its screw jack drive systems offer reliable 0°–90° elevation and 120° azimuth travel. The system is factory-assembled to minimize installation time and maximize long-term stability.
Made in the USA and engineered for demanding environments, the Challenger 6.3m Satellite RX Antenna is ideal for large-scale downlink operations in any C, Ku, or X-band configuration.
Key Features
- 6.3m prime focus antenna for high-gain, receive-only applications
- Supports C, Ku, and X-band reception with linear or circular polarization
- 360° continuous polarization rotation
- Factory-assembled reflector and mount reduce on-site labor
- Stretch-formed aluminum panels ensure precise surface accuracy
- Galvanized steel pedestal with mechanical screw jack drive systems
- Standard wind survival rating of 125 mph; high wind option available
- 1- or 2-port feed options available per band
- Powder-coated finish for long-term environmental resistance
- Made in the USA
Technical Specifications
- Reflector Size: 6.3 meters
- Mount Type: Tube pedestal with mechanical screw jacks
- Azimuth Travel: 120° (±60°)
- Elevation Travel: 0° to 90°
- Polarization Rotation: 360° continuous
- Reflector Material: Precision stretch-formed aluminum
- Finish: High diffusive white powder coat
- Structure Material: Hot-dip galvanized steel
- Frequency Bands (Receive):
- Ku-Band: 10.95–12.75 GHz
- C-Band: 3.625–4.2 GHz
- X-Band: 7.75–7.75 GHz
- Midband Gain:
- Ku-Band: 55.7 dBi
- C-Band: 46.4 dBi
- X-Band: 52 dBi
- Noise Temperature @10° Elevation:
- Ku-Band: 53K
- C-Band: 48K
- X-Band: 50K
- VSWR (Rx): 1.4:1 across all bands
- Polarization Isolation: 30 dB (Ku/C), 25 dB (X)
- Feed Flanges:
- Ku-Band: WR75
- C-Band: CPR229G
- X-Band: CPR112G
- Operational Wind: 45 mph (gusts to 60 mph)
- Survival Wind (Stowed): 125 mph
- Temperature Range: -22°F to 140°F (-30°C to 60°C) operational, -60°F to 180°F (-51°C to 82°C) survival
- Humidity: 0–100% with condensation
- Rain Load: Up to 4 in/hr (10 cm/hr)
- Ice Load: 1 in radial ice or 0.5 in with 80 mph gusts
