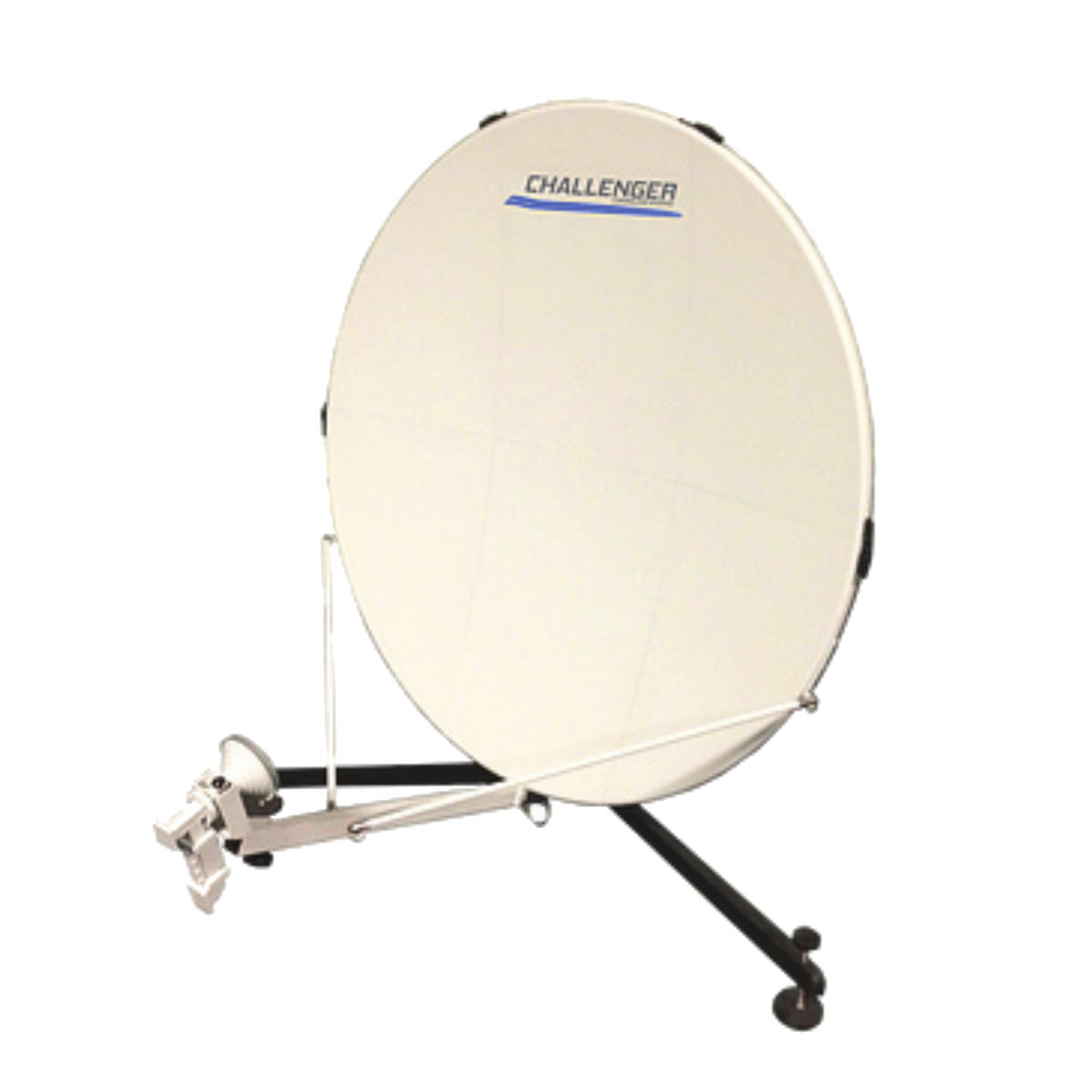

Challenger 1.0m Ku-Band Quick Deploy Antenna
Designed for rapid deployment and reliable SATCOM connectivity, the Challenger 1.0m Ku-Band Quick Deploy Antenna delivers high gain, robust construction, and tool-free setup. It is the ideal solution for field teams, mobile command centers, and emergency response units requiring portable, high-performance satellite communication.
The antenna features a lightweight 6-piece reflector system, laser-aligned for precision and efficiency. Integrated hand-crank adjustments allow for fast and accurate satellite acquisition without the need for tools. With support for Ku-band operation and ruggedized transport options, this system is built to withstand extreme conditions in remote environments.
The system includes AntennaArmor™, Challenger’s proprietary edge and surface protection system, ensuring durability during transport and repeat deployments in harsh environments.
Manufactured in the USA and engineered for mobility and performance, this antenna system ensures mission readiness with every deployment.
Key Features
- Rapid tool-free assembly in under 10 minutes
- 6-piece precision aluminum reflector with laser-verified accuracy
- Ku-band operation: Rx 10.7–12.75 GHz, Tx 13.75–14.5 GHz
- High antenna gain: 39.3 dBi (Rx) and 41.4 dBi (Tx)
- 360° continuous azimuth and 0–90° elevation adjustment via hand cranks
- Integrated AntennaArmor™ system protects panel edges and critical surfaces from impact damage
- Compatible with rugged backpack or hard case for field deployment
- Withstands wind gusts up to 45 mph with proper anchoring
- Made in the USA with high-grade components
Technical Specifications
- Reflector: 1.0m, 6-piece offset, prime focus design
- Frequency Range: Receive: 10.7–12.75 GHz / Transmit: 13.75–14.5 GHz
- Gain: 39.3 dBi @ 11.7 GHz (Rx), 41.4 dBi @ 14.25 GHz (Tx)
- VSWR: <1.5:1 (Rx), <1.2:1 (Tx)
- Cross-Polarization Isolation: >30 dB on axis
- Port-to-Port Isolation: >45 dB (Rx), >80 dB (Tx)
- Feed Interface: WR75
- Mount Type: Azimuth over Elevation
- Elevation Adjustment: 0° to 90°
- Azimuth Adjustment: 360° continuous
- Operational Temperature: -20°F to 125°F / -28.9°C to 51.7°C
- Survival Temperature: -45°F to 140°F / -42.8°C to 60°C
- Wind Loading: Operational up to 20 mph, survival 30–45 mph with proper anchoring
- Materials: Lightweight aluminum reflector panels with reinforced AntennaArmor™ backing
- Weight: Approx. 65 lbs with backpack-style transport case, fully packed
