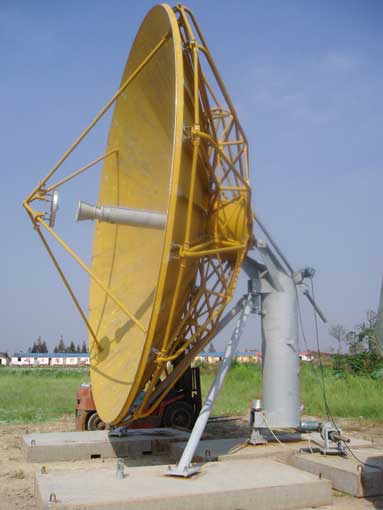

6.2M RING FOCUS RO & Tx/Rx ANTENNA




SPECIFICATIONS   C-RECEIVE C-TRANSMIT Ku-RECELVE Ku-TRANSMIT
Frequency (GHz)   3.625-4.2 5.85-6.425 10.95-12.75 14-14.5
Typical Gain (dBi)   46.8 50.2 55.9 57.2
VSWR   1.25:1 1.25:1 1.25:1 1.25:1
Beamwidth:-3dB   0.81° 0.53° 0.27° 0.23°
-15dB   1.62° 1.07° 0.54° 0.46°
Antenna Noise Temperature (K) 2/4 Port Feed     2/4 Port Feed
    2/4   2/4
10 Elevation   35/42   63/67
20 Elevation   26/36   51/58
40 Elevation   24/33   49/52
Power Handing Capability     5Kw/port   1Kw/port
Feed Interface   CRP-229G CRP-159GG/137G   WR-75
Feed Insertion Loss(dB)   0.25dB 0.2dB 0.25 0.25
Port-port isolation(dB)
Tx-Rx   85dB 85
Rx-Tx, Tx-Tx linear   30 30 30 30
Tx-Tx, Rx-Rx Circular   21 21
Cross Polarization Isolation (dB)
    35dB 35dB 35dB 35dB
    33dB 33dB 33dB 33dB
Axial ratio,dB(Ratio)   0.8/0.5dB 0.5dB
Sidelobes   CCLR.580-2

MECHANICAL SPECIFICATIONS
Azimuth Travel   ±90°
Elevation Travel   0°to 90°
Elevation/Azimuth Axis Drive Rates El-AZ
0.02°/s-0.04°/s
Installation Hardware
Polarization Hardware   1°/s
Surface Accuracy   0.5mm
Finish   White paint

ENVIRONMENTAL SPECIFICATIONS
Operational Winds   45mi/h(72km/h) thrusts
    To60mi/h(97km/h)
Survival Winds   125mi/h(200km/h)

Ambient Temperature   -45° to 60°
Relative Humidity   10% to 98%
Seismic (Survival)   0.3G’s horizontal
    0.15G’s vertical
6.2m Ring-Focus Antenna, PERFORMANCE SPECIFICATIONS

The 6.2 Meter C-band and Ku-band antennas offer superior performance for receive only and satellite communication Tx/Rx applications.

These antennas meet the requirements for 2 satellite spacing per FCC Docket 81-704 and INTELSAT approvals.

Options:

Two port, three port, four port Rx/Tx linear or/and circular polarized feeds

Manual or motorization azimuth, elevation and polarization drive systems with controls  and readouts..
