4.5M RING FOCUS Tx&Rx ANTENNA

Available motors: EL/AZ

SPECIFICATIONS

C-RECEIVE

C-TRANSMIT

Ku-RECEIVE

Ku-TRANSMIT

Frequency (GHz)

3.625-4.2

5.85-6.425

10.95-12.75

14-14.5

Typical Gain (dB)

43.8

47.2

53

54.5

VSWR

1.251

1.251

1.251

1.251

Beamwidth:-3dB

1.14°

0.72°

0.37°

0.31°

-15dB

2.4°

1.42°

0.57°

0.63°

Antenna Noise

Temperature (K)

2/4 Port Feed



2/4 Port Feed



10 Elevation

36



60



20 Elevation

27



50



40 Elevation

24



44



Power Handing

Capability



5Kw/port



1Kw/port

Feed Interface

CRP-229G

CRP-159GG/137G



WR-75

Feed Insertion

Loss (dB)

0.25dB

0.2dB

0.25

0.25

Tx-Rx

85

85





(0dB)

35dB

35dB

35dB

35dB

(1dB)

33dB

33dB

33dB

33dB

Axial ratio ,dB (Ratio)

1.5dB

1.8dB





Side lobes

CCLR.580







Azimuth Travel

±60°

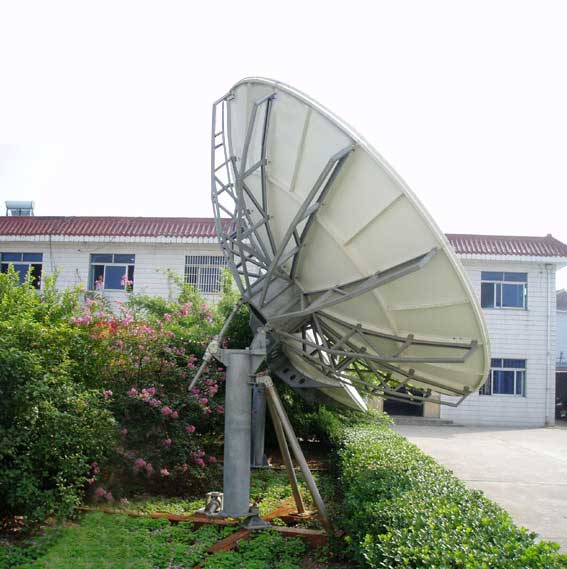

Peng Li VSAT satellite antenna

Click on images
for larger picture



Peng Li   VSAT Motorized 4.5M

Antenna Package

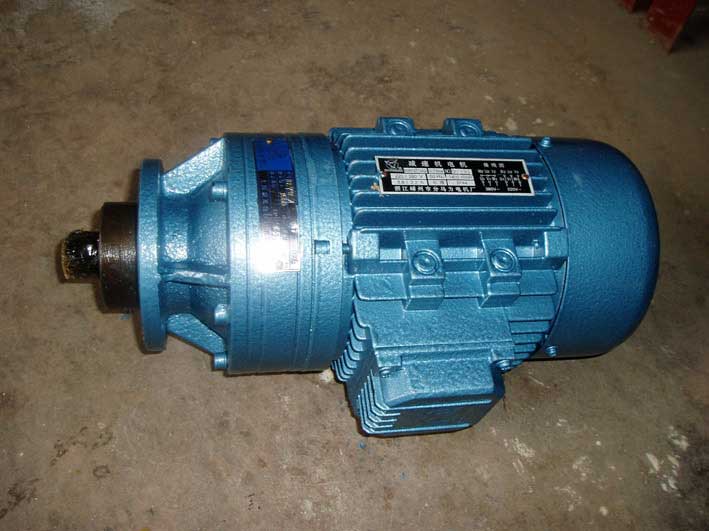

Motor

Elevation Travel

5°to 90°

Surface Accuracy

0.5mm

Finish

White paint

Operational Winds

45mi/h (72km/thrusts)

To 60mi/h  (97km/h)

Survival Winds

125mi/h (200km/h)

Ambient Temperature

-45° to 60°

Relative Humidity

10% to 98%

Seismic (Survival)

 0.3G’s horizontal

0.15G’s vertical
