Huaxin high precision receive and transmit (RX/TX) satellite communication antennas.

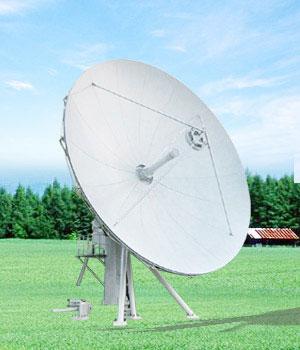

9.0m Ring-focus C-band & Ku-band TX & RX  antenna


  Features:

  • Aluminum major reflector with high precision, using aluminum rod to stretch blank and then rivet them to form the reflector.
  • Subreflector and corrugating feed and waveguide components which are precisely processed by numerically controlled machines.
  • Column type seat and Truss type frame with high stiffness.
  • Optional C Band and Ku Band.
  • Auto control possesses electric equivalent angle display and automatic tracking device.
  • Advanced surface painting techniques enable the device with high anticorrosive and antirust capabilities.
  • Customizable upon user’ needs


   Request Product information



Description:

SPECIFICATIONS

C-RECEIVE

C-TRANSMIT

Ku-RECEIVE

Ku-TRANSMIT

Frequency (GHz)

3.625-4.2

5.85-6.425

12.25-12.75

14-14.5

Typical Gain (dBi)

49.79

53.38

59.56

60.35

VSWR

1.25:1

Beamwidth: -3dB

0.532°

0.352°

0.173°

0.158°

-15dB

1.064°

0.7042°

0.346°

0.315°

Antenna Noise Temperature(°K)

2/4Port Feed



2/4Port Feed



10°Elevation

34°k



57°k



20°Elevation

26°k



47°k



40°Elevation

23°k



43°k



Power Handing Capability



5KW/Port



1KW/Port

Feed interface

CPR-229G

CPR-137G

BJ120

Feed Insertion Loss

0.25/0.3dB

0.20dB

0.3/0.40dB

TX - RX

≥85dB

≥85dB

RX-RX, TX-TX linear

30dB

30dB

Cross Polarization Isolation (on axis)

≥35dB

≥35dB

Sidelobes

CCIR.580-4

MECHANICAL SPECIFICATIONS



Antenna Optics

Ring-focus antenna

Azimuth Travel

0°-170°

Elevation Travel

0°to 90

Elevation/Azimuth Axis Drive Rates

0.01°/S-0.03°/S

Polarization Travel Rate

±45°

Surface Accuracy

0.5mm(R.M.S)

ENVIRONMENTAL SPECIFICATIONS



Operational Winds

45mi/h(72km/h) gusts to 60mi/h(97km/h)

Survival Winds

125mi/h(200km/h)

Ambient Temperature

-40° to 50°

Relative humidity

10%- 100%

Seismic (Survival)

0.3G ‘ s horizontal 0.15G ‘ s vertical
