Huaxin high precision receive and transmit (RX/TX) satellite communication antennas.

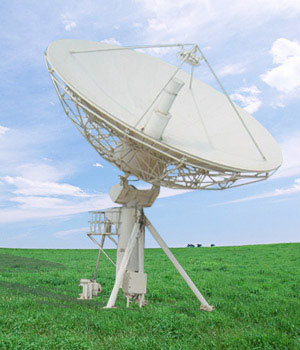

7.3m Ring-focus C-band & Ku-band TX & RX  antenna


  Features:

  • Aluminum major reflector with high precision, using aluminum rod to stretch blank and then rivet them to form the reflector.
  • Subreflector and corrugating feed and waveguide components which are precisely processed by numerically controlled machines.
  • Column type seat and Truss type frame with high stiffness.
  • Optional C Band and Ku Band.
  • Auto control possesses electric equivalent angle display and automatic tracking device.
  • Advanced surface painting techniques enable the device with high anticorrosive and antirust capabilities.
  • Customizable upon user’ needs


   Request Product information



Description:

SPECIFICATIONS

C-RECEIVE

C-TRANSMIT

Ku-RECEIVE

Ku-TRANSMIT

Frequency (GHz)

3.4-4.2

5.85-6.725

10.95-12.75

13.75-14.5

Typical Gain (dBi)

47.59dB

51.63dB

57.6dB

58.53dB

VSWR

1.25:1

Beamwidth:-3dB

0.685°

0.4304°

0.216°

0.194°

-15dB

1.37

0.8608°

0.432°

0.389°

Antenna Noise Temperature(°K)

2Port Feed



2Port Feed



10°Elevation

34°k



57°k



20°Elevation

27°k



47°k



40°Elevation

24°k



43°k



Power Handing Capability



5KW/Port



1KW/Port

Feed interface

CPR-229G

CPR-137G

WR-75

WR-75

Feed Insertion Loss

0.25dB

0.2dB

0.25dB

0.25dB

TX - RX

≥85dB

≥85dB

Cross Polarization Isolation (on axis)

≥35dB

≥35dB

Sidelobes

CCIR.580-4

MECHANICAL SPECIFICATIONS



Azimuth Travel

±60°

Elevation Travel

0°to 90

Elevation/Azimuth Axis Drive Rates

0.01°/S-0.03°/S

Polarization Travel Rate

±45°

Surface Accuracy

0.5mm(R.M.S)

ENVIRONMENTAL SPECIFICATIONS



Operational Winds

45mi/h(72km/h) gusts to 60mi/h(97km/h)

Survival Winds

125mi/h(200km/h)

Ambient Temperature

-40° to 50°

Relative humidity

10%- 100%

Seismic (Survival)

0.3G ‘ s horizontal 0.15G ‘ s vertical
