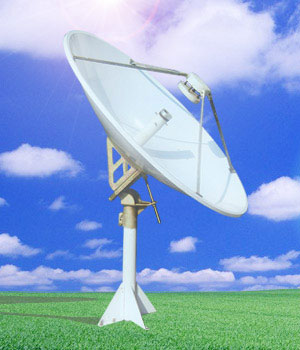

1.288m Ring-focus Ku-band TX & RX antenna


  Features:

  • In-block molded aluminum major reflector with high precision.
  • Subreflector and corrugating feed and waveguide components which are precisely processed by numerically controlled machines.
  • High precision and strength.
  • Advanced surface painting techniques enable the device with high anticorrosive and antirust capabilities.
  • Column type seat with high stability.
  • The antenna with novel design can be rapidly installed and easily adjusted.
  • Customizable upon user’s needs.


   Request Product information



Description:

SPECIFICATIONS

C-RECEIVE

C-TRANSMIT

Ku-RECEIVE

Ku-TRANSMIT

Frequency (GHz)





10.95-12.75

13.75-14.5

Typical Gain (dBi)





42.07

43.38

VSWR





1.25:1

1.25:1

Beamwidth:-3dB





1.29°

1.113°

-15dB





2.59°

2.225°

Antenna Noise Temperature(°K)





2 Port Feed



10°Elevation





43



20°Elevation





39



40°Elevation





35



Power Handing Capability







1KW/Port

Feed interface





WR-75

WR-75

Feed Insertion Loss

    0.20dB 0.20dB

TX - RX





≥85dB

≥85dB

Cross Polarization Isolation (on axis)





≥35dB

≥35dB

Within-1dB≥33dB

Within-1dB≥33dB

Sidelobes

CCIR.580-4

MECHANICAL SPECIFICATIONS



Azimuth Travel

360°

Elevation Travel

0°to 90

Surface Accuracy

0.5mm(R.M.S)

ENVIRONMENTAL SPECIFICATIONS



Operational Winds

45mi/h(72km/h) gusts to 60mi/h(97km/h)

Survival Winds

125mi/h(20km/h)

Ambient Temperature

-45° to 60°

Relative humidity

0% to 100%

Seismic (Survival)

0.3G ‘ s horizontal 0.15G ‘ s vertical

Re-installing precision

0.6mm

Mechanical ability to resist

1.5
