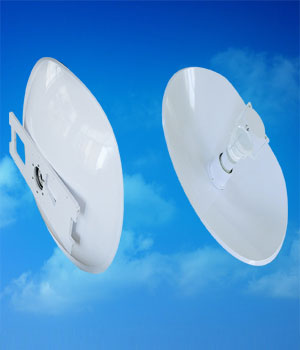

0.6m Ring-focus Ku-band RX / TX antenna


  Features:

  • In-block molded aluminum major reflector with high precision.
  • Subreflector and corrugating feed and waveguide components which are precisely processed by numerically controlled machines.
  • High precision and strength.
  • Advanced surface painting techniques enable the device with high anticorrosive and antirust capabilities.
  • The antenna with novel design can be rapidly installed and easily adjusted.
  • Customizable upon user’s needs.


   Request Product information



Description:

SPECIFICATIONS

C-RECEIVE

C-TRANSMIT

Ku-RECEIVE

Ku-TRANSMIT

Frequency (GHz)





12.25-12.75

14-14.5

Typical Gain (dBi)





35.9

36.827

VSWR





1.25:1

1.25:1

Beamwidth: -3dB





2.634°

2.36°

-15dB





5.268°

4.73°

Antenna Noise Temperature(°K)





2Port Feed



10°Elevation





49



20°Elevation





41



40°Elevation





35



Power Handing Capability







1KW/Port

Feed interface





WR-75

WR-75

Feed Insertion Loss





0.25dB

0.20dB

TX - RX





≥85dB

≥85dB

Cross Polarization Isolation (on axis)





≥35dB

≥35dB

Within-1dB≥33dB

Within-1dB≥33dB

Sidelobes

CCIR.580-4

MECHANICAL SPECIFICATIONS



Azimuth Travel

360°

Elevation Travel

0°to 90

Surface Accuracy

0.5mm(R.M.S)

ENVIRONMENTAL SPECIFICATIONS



Operational Winds

45mi/h(72km/h) gusts to 60mi/h(97km/h)

Survival Winds

125mi/h(200km/h)

Ambient Temperature

-45° to 60°

Relative humidity

0% to 100%

Seismic (Survival)

0.3G ‘ s horizontal 0.15G ‘ s vertical
