VL-4 (1 Tray), 6.62″ O.D. x 3.5′ Mast w/ Pad (Global Skyware)

VL-4 (1 Tray)
Baird

VL-4 (1 Tray), 6.62″ O.D. x 3.5′ Mast w/ Pad (Global Skyware)

Wholesale Distributor

Contact Us For Pricing

  • Supports Global Skyware 2.4m Antennas
  • Shipping Weight: 474 lbs
  • Shipping Dimensions: 76″ L x 24″ W x 34″ H

SKU: BRD118 Tags: , , , , ,
Add to quote
  • Description
  • Product Information
  • Support Documents

Overview

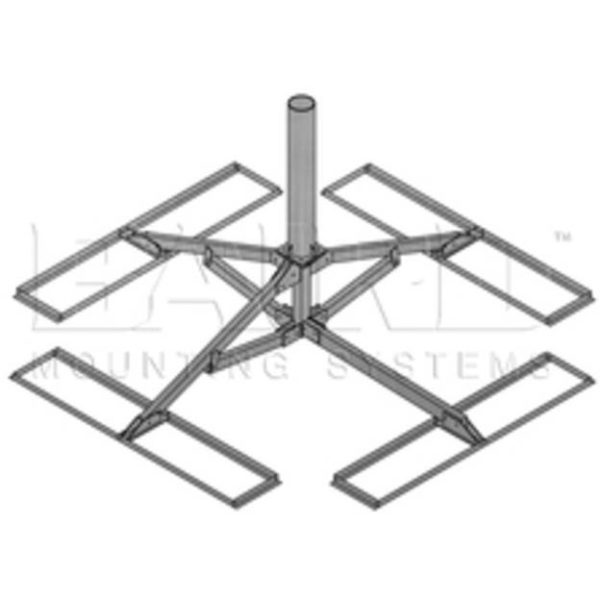

The Baird VL-4 (1 Tray) non-penetrating mount is designed with a dropped leg to mount satellite antennas at low elevation angles.

The VL-4 is used with all major brands of 2.4M satellite antennas, including the Prodelin 1244, Prodelin 1251 and Skyware Global (Raven) 2.4M antenna models.

Details

  • Supports Global Skyware 2.4m Antennas
  • Shipping Weight: 474 lbs
  • Shipping Dimensions: 76″ L x 24″ W x 34″ H

Part Number / Description
VL4-S-662x3-RP Non-Pen Mount, 1 Tray Per Leg, 10.3' x 10.3' Footprint, 6.62" O.D. x 3' Mast w/ Rubber Roof Pad
VL4-S-662x42-RP Non-Pen Mount, 1 Tray Per Leg, 10.3' x 10.3' Footprint, 6.62" O.D. x 42" Mast w/ Rubber Roof Pad
Product Information
Application: Roof-Top or Ground
Type: Non-Penetrating, Flat Surface
Uses: Satellite up to 2.4M
Some Satellite up to 3.1M
Wireless
Other Applications
Footprint: 10.3' x 10.3' = 106.11 sq ft
Finish: Hot Dip Galvanized
Available Options: 1 Tray Per Leg
2 Trays Per Leg
3 Trays Per Leg
Penetrating Feet (No Trays)
Satellite Mast Sizes: 6.62" O.D.
Up to 42" (Mount Height = 5.7')
Wireless / Other Application Mast Sizes: 4.00" O.D. to 4.50" O.D.
3.0' to 8.0' Height
(Mount Height = 5.2' to 10.2')
Ballast: Up to 32 Standard Concrete
Blocks (8" x 8" x 16")
Shipping: Freight
Pallet or Crate
Warranty: 10 Year Product Warranty


VL-4 (1 Tray), 6.62" O.D. x 3.5' Mast w/ Pad (Global Skyware) Datasheet PDF
