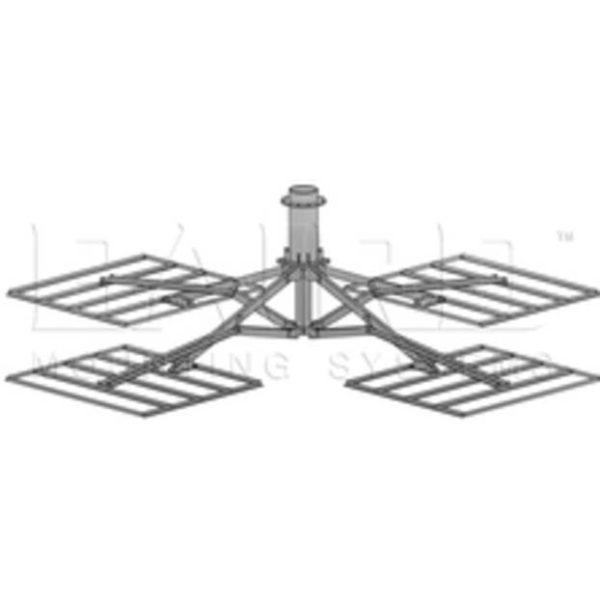

PXL-2 HD (4 Trays) 10.75″ O.D. (Collar) x 3′ Mast w/ Pad (CPI Satcom)

Contact Us For Pricing
- Supports CPI Satcom 3.8m Antennas
- Shipping Weight: 1400 lbs
- Shipping Dimensions: 82″ L x 32″ W x 36″ H
SKU: BRD111
Tags: 3.8m, Antennas, Baird, Mount For CPI Satcom, Non-Penetrating Roof Mounts, PXL-2-HD-(4-Trays)
- Description
- Product Information
- Support Documents
Overview
The Baird PXL-2 HD (4 Trays) is a non-penetrating mount for ground and roof-top site installations. The PXL-2 HD with a 10.75″ O.D. (collar) mast is compatible with all CPI Satcom / Prodelin 3.8M satellite antenna models including 1382, 1383 and 1385.
Details
- Supports CPI Satcom 3.8m Antennas
- Shipping Weight: 1400 lbs
- Shipping Dimensions: 82″ L x 32″ W x 36″ H
Part Number / Description | |
---|---|
PXH-Q-550x4-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 5.50" O.D. x 4' Mast w/ Rubber Roof Pad |
PXH-Q-5568x30-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 5.56" O.D. (S80) x 2.5' Mast w/ Rubber Roof Pad |
PXH-Q-662x3-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 6.62" O.D. x 3' Mast w/ Rubber Roof Pad |
PXH-Q-6628x3-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 6.62" O.D. (S80) x 3' Mast w/ Rubber Roof Pad |
PXH-Q-6628x43-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 6.62" O.D. (S80) x 4.3' Mast w/ Rubber Roof Pad |
PXH-Q-6628x55-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 6.62" O.D. (S80) x 5.5' Mast w/ Rubber Roof Pad |
PXH-Q-1075x3-RP | Non-Pen Mount, 4 Trays Per Leg, 20.3' x 20.3' Footprint, 10.75" O.D. (Collar) x 3' Mast w/ Rubber Roof Pad |
Product Information | |
Application: | Roof-Top or Ground |
Type: | Non-Penetrating, Flat Surface |
Uses: | Satellite 3.0M to 3.8M Other Applications |
Footprint: | 20.3' x 20.3' = 412.1 sq ft |
Finish: | Hot Dip Galvanized |
Available Options: | 3 Trays Per Leg 4 Trays Per Leg Penetrating Feet (No Trays) |
Satellite Mast Sizes: | 5.50" O.D. to 10.75" O.D. 2.5' Mast to 5.5' Mast (Mount Height = 5.75' to 8.75') |
Wireless / Other Application Mast Sizes: | 4.50" O.D. to 10.75" O.D. 3.0' to 17.0' Height (Mount Height = 6.25' to 20.25') |
Ballast: | Up to 128 Standard Concrete Blocks (8" x 8" x 16") |
Shipping: | Freight Pallet or Crate |
Warranty: | 10 Year Product Warranty |
Quote Request - PXL-2 HD (4 Trays) 10.75" O.D. (Collar) x 3' Mast w/ Pad (CPI Satcom)
