Overview

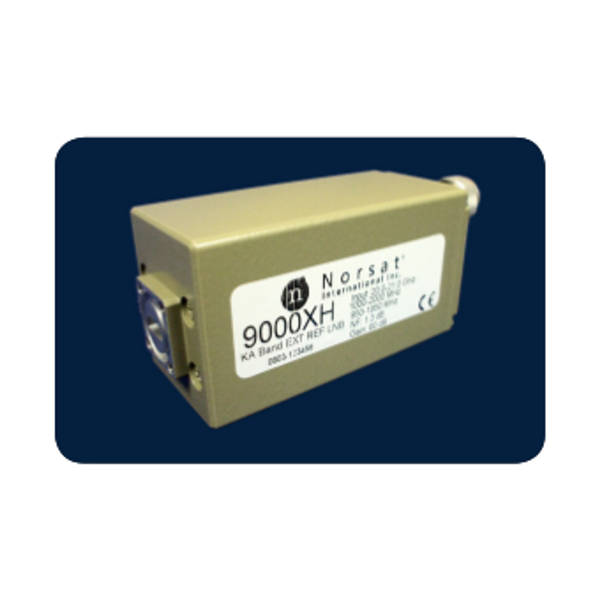

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.
Details
(view our datasheet)
| Typical Specifications | |
|---|---|
| Noise figure | 1.3 dB |
| L.O. stability | Phase locked to External Reference |
| Phase noise (SSB) | -63 dBc/Hz at 100 Hz max -80 dBc/Hz at 1 kHz -92 dBc/Hz at 10 kHz -100 dBc/Hz at 100 kHz |
| Input VSWR | 1.3 : 1 |
| Output VSWR | 1.44 : 1 |
| Conversion gain | 60 dB |
| Output P1dB | >3 dBm |
| Power requirements | +9 to +13 V supplied through center conductor of IF cable (optional +18 V or +11 to + 28 V) |
| Waveguide Flange | WR42 |
| Current drain | 400 mA |
| Dimensions | 120 (L) x 45 (W) x 51(H) mm (2.0 x 1.8 x 3.9 in) |
| Weight | 350 g / 12.3 oz |
| Temperature Range | -30°C to +55°C |
| Input Stability | Unconditionally Stable |
| Gain Flatness | 2.5 dB p-p over Full Band |
| Gain Variation over Temp | ±2 dB |
| External Reference | 10 MHz, -3 to +3 dBm |
| Desensitization | -25 dBm (30 - 31 GHz) |
| Max Input no damage | 0 dBm (20.2 - 21.2 GHz) +10 dBm (30-31 GHz) |
| Comply to MIL STD | MIL - STD - 188 - 164 |
| Frequency Bands Available | |
| Typical service | 9000XH |
| Input frequency (GHz) | 20.20 to 21.20 |
| L.O. frequency (GHz) | L: 19.25 H: 19.20 |
| Output frequency (MHz) | L: 950 to 1950 H: 1000 to 2000 |
LNB Ka-Band Ext Ref 9000XH Datasheet PDF
Quote Request - LNB Ka-Band Ext Ref 9000XH
