B4-6×6, 3.00″ OD x 3′ Mast w/ Pad (Global Skyware)

Contact Us For Pricing
- Supports Global Skyware 1.2m Antennas
- Shipping Weight: 95 lbs
- Shipping Dimensions: 73″ L x 6″ W x 10″ H
SKU: BRD112
Tags: 1.2m, Antennas, B4-6x6, Baird, Mount For Global Skyware, Non-Penetrating Roof Mounts
- Description
- Product Information
- Support Documents
Overview

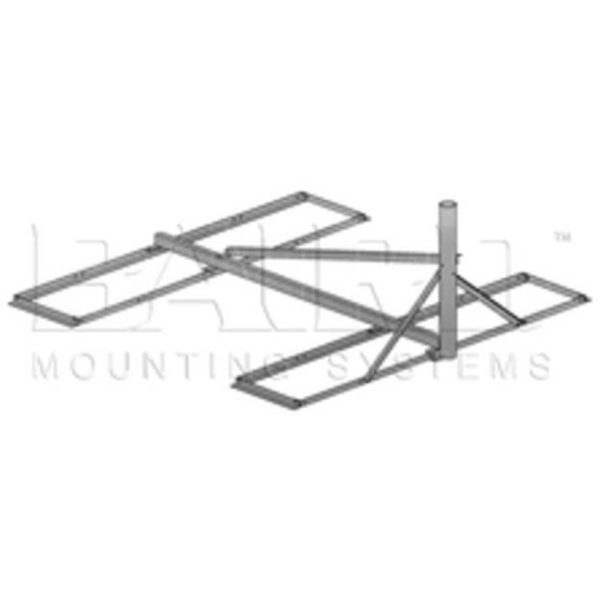

The Baird B4-6×6 is a non-penetrating mount for ground and roof-top site installations. The B4-6×6 is commonly used with:
1.2M satellite antennas
Microwave antennas
Wireless antennas
Cameras
Monitoring equipment
Other applications
Details
- Supports Global Skyware 1.2m Antennas
- Shipping Weight: 95 lbs
- Shipping Dimensions: 73″ L x 6″ W x 10″ H
Part Number / Description | |
---|---|
B46-237x3-R | Non-Pen Mount, 6.25' x 6.00' Footprint, 2.37" O.D. x 3' Mast w/ Rubber Roof Pad |
B46-288x3-R | Non-Pen Mount, 6.25’ x 6.00' Footprint, 2.88" O.D. x 3' Mast w/ Rubber Roof Pad |
B46-300x3-R | Non-Pen Mount, 6.25' x 6.00' Footprint, 3.00" O.D. x 3' Mast w/ Rubber Roof Pad |
Product Information | |
Application: | Roof-Top or Ground |
Type: | Non-Penetrating, Flat Surface |
Uses: | Satellite up to 1.2M Wireless Other Applications |
Footprint: | 6.25' x 6.00' = 37.5 sq ft |
Finish: | Hot Dip Galvanized |
Satellite Mast Sizes: | 2.37" O.D. to 3.00" O.D. 3.0' Height |
Wireless / Other Application Mast Sizes: | 1.66" O.D. to 3.00" O.D. 3.0' to 10' Height |
Ballast: | Up to 16 Standard Concrete Blocks ( 8" x 8" x 16") |
Shipping: | UPS/Fedex Shipping Available Bulk Shipments - Up to 25 Units per Pallet |
Warranty: | 10 Year Product Warranty |
