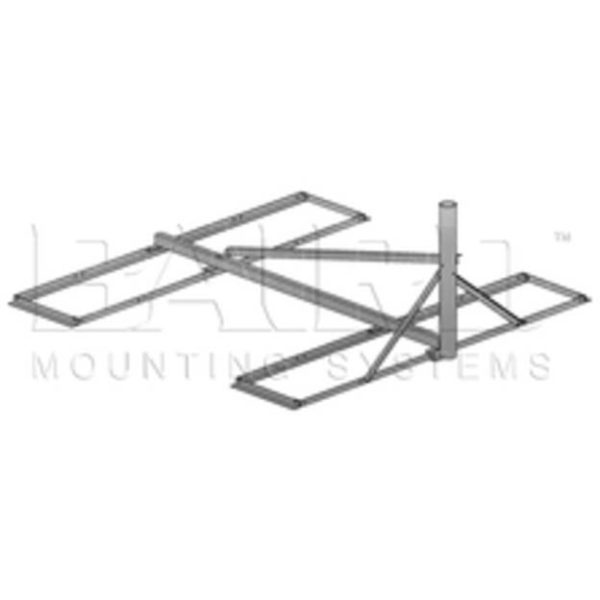

B4-6×6, 2.88″ OD x 3′ Mast w/ Pad (CPI Satcom)

Contact Us For Pricing
- Supports CPI Satcom 1.2m Antennas
- Shipping Weight: 95 lbs
- Shipping Dimensions: 73″ L x 6″ W x 10″ H
SKU: BRD101
Tags: 1.2m, Antennas, B4-6x6, Baird, Mount For CPI Satcom, Non-Penetrating Roof Mounts
- Description
- Product Information
- Support Documents
Overview
The Baird B4-6×6 is a non-penetrating mount for ground and roof-top site installations. The B4-6×6 is commonly used with 1.2M satellite antennas, microwave antennas, wireless antennas and other applications.
Applications
Satellite
1.2M Antennas
Prodelin Series 1123, 1132, 1134, 1135, 1891, 1892, 1983, 1984, and 1985
Wireless
Mast Diameters up to 2.88″ O.D.
Mast Heights up to 10′
Details
- Supports CPI Satcom 1.2m Antennas
- Shipping Weight: 95 lbs
- Shipping Dimensions: 73″ L x 6″ W x 10″ H
Part Number / Description | |
---|---|
B46-237x3-R | Non-Pen Mount, 6.25' x 6.00' Footprint, 2.37" O.D. x 3' Mast w/ Rubber Roof Pad |
B46-288x3-R | Non-Pen Mount, 6.25’ x 6.00' Footprint, 2.88" O.D. x 3' Mast w/ Rubber Roof Pad |
B46-300x3-R | Non-Pen Mount, 6.25' x 6.00' Footprint, 3.00" O.D. x 3' Mast w/ Rubber Roof Pad |
Product Information | |
Application: | Roof-Top or Ground |
Type: | Non-Penetrating, Flat Surface |
Uses: | Satellite up to 1.2M Wireless Other Applications |
Footprint: | 6.25' x 6.00' = 37.5 sq ft |
Finish: | Hot Dip Galvanized |
Satellite Mast Sizes: | 2.37" O.D. to 3.00" O.D. 3.0' Height |
Wireless / Other Application Mast Sizes: | 1.66" O.D. to 3.00" O.D. 3.0' to 10' Height |
Ballast: | Up to 16 Standard Concrete Blocks ( 8" x 8" x 16") |
Shipping: | UPS/Fedex Shipping Available Bulk Shipments - Up to 25 Units per Pallet |
Warranty: | 10 Year Product Warranty |
Quote Request - B4-6x6, 2.88" OD x 3' Mast w/ Pad (CPI Satcom)
