5089 Series 5 GHz Downconverters |
||

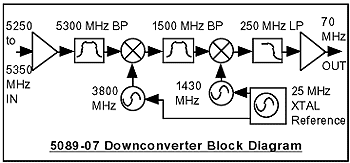

The Series 5089 5 GHz Downconverters convert 5 GHz to IF with no spectrum inversion, high linearity, good phase noise, flat frequency response, and 1 MHz tuning steps. For the 5089-07, the 5.30 GHz input is mixed with synthesized local oscillator (LO) signals, first to 1500 MHz and finally to 70 MHz IF. The 5089-17 has a 170 MHz IF output and 5.725 to 5.825 GHz input frequency. Other frequencies can be provided. Front panel LEDs indicate DC power is applied (green) and if a PLL alarm occurs (red). The gain is set at 10 dB . Connectors are type N female for the RF input and type F female for the IF output. The 5089 is housed in an 1 3/4” X 19“ X 14“ deep rack mount chassis. |
Equipment Specifications*
Input Characteristics | |
Impedance/RL Frequency, 5089-07 Frequency, 5089-17 Level range Input 1 dB compression |
50 ohms/10dB 5300 ± 20 MHz 5775 ± 50 MHz -20 to -30 dBm -10 dBm |
Output Characteristics | |
Impedance/RL Frequency, 5089-07 Frequency, 5089-17 Level, max linear Output 1 dB compression |
75 ohms/15dB 70 ± 20 MHz 170 ± 50 MHz -10 dBm 0 dBm |
Channel Characteristics | |
Gain Image Rejection Spurious Response Frequency Response |
10 ± 1.0 dB > 45 dB, min; > 50 dB, typ. < -50 dBC in band ±1.5dB, entire band; ±0.5 dB, any 10 MHz incr. |
Synthesizer Characteristics | |
Frequency Accuracy Phase Noise (dBC/Hz) |
±10 kHz max over
temp <= -75, 10kHz; <= -90, 100kHz; <= -100, 1MHz |
Controls, Indicators | |
Frequency select DC Power PLL Alarm |
BCD switches
select input left frequency in 1 MHz steps Green LED Red LED |
Other | |
IF
Connectors RF Connectors Size Power |
type F, female type N, female 19"W X 1.75"H X 14.0"D 90-260 VAC, 47-63 Hz, 30W max |
Model Numbers | |
5089-07 5089-17 Call for other frequencies |
5300 ± 20 MHz
input and 70 MHz IF output 5775 ± 50 MHz input and 170 MHz IF output ---- |
*+10 to +40 degrees C; Specifications subject to change without notice
