2017-03 L-Band Up/Downconverter |
||

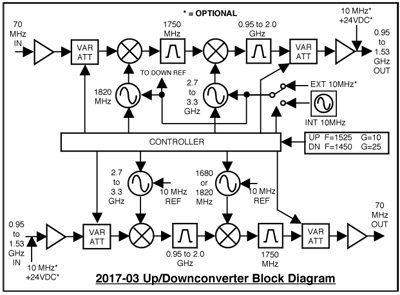

The 2017-03 L-band Up/Downconverter converts 70 MHz to 950-1525 MHz (Up) and 950-1525 MHz to 70 MHz (Down) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm for up and downconverters (red), remote operation (yellow), and Upconverter mute (yellow). Gain is manually controlled over a –10 to +30 dB range for the upconverter and over a 0 to +50 dB range for the downconverter as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and the optional external reference input and output, and Type F female for RF. LNB or SSPB +24 VDC and 10 MHz reference can be inserted on the RF lines as added options. A high stability (±0.01ppm) option is also available. The unit is powered by a 90-260 VAC power supply and housed in a 1.75” X 19“ X 16” rack mount chassis. |
Equipment Specifications*
UPCONVERTER | DOWNCONVERTER | ||
RF Characteristics (OUT) | RF Characteristics (IN) | ||
Impedance/RL Frequency Output Level Output 1dB comp |
75 ohms/10dB 950 to 1525 MHz 0 to -20 dBm +5 dBm |
Impedance/RL Frequency Noise Figure, max. Input Level Input 1dB comp |
75 ohms/10dB 950 to 1525 MHz 15 dB @ max gain -20 to -70 dBm -15 dBm @ 0 dB gain |
IF Characteristics (IN) | IF Characteristics (OUT) | ||
Impedance/RL Frequency Input Level |
75 ohms/18dB 70 ± 18 MHz -40 to -10 dBm |
Impedance/RL Frequency Output Level Output 1 dB comp |
75 ohms/18dB 70 ± 18 MHz -25 to -15 dBm -5 dBm |
Channel Characteristics | Channel Characteristics | ||
Gain (adjustable) Frequency Sense |
-10.0 to 30.0 dB Non-inverting |
Gain (adjustable) Freq Sense (selectable) |
0 to 50 dB Non-inverting or inverting |
UPCONVERTER AND DOWNCONVERTER | |||
Channel Characteristics | |||
Frequency Response Group Delay, max Spurious Response |
±1.5 dB, entire band; ±0.5 dB, 36 MHz BW 3 ns, 30 MHz, 5 ns, 36 MHz BW < -50 dBc, in band |
||
Synthesizer Characteristics | |||
Frequency Accuracy Frequency Step Phase Noise (dBC/Hz) 10 MHz Level (In or Out) |
±1.0 ppm max over temp (± 0.01 ppm option -H) internal
reference 1.0 MHz (as low as 1 kHz steps available) < -70 @ 0.1kHz, 1 kHz; < -80 @ 10 kHz; < -90 @ 100kHz; < -100 @ 1MHz 0 dBm, ±3 dB, 75 ohms (option -E) |
||
Controls/Indicators | |||
Frequency Selection Gain Selection Alarm DC Power Mute Remote |
Direct readout LCD; push button switches or remote
selection Direct readout LCD; push button switches or remote selection Red LED Green LED Yellow LED Yellow LED; RS232C, 9600 baud (RS485, option -Q) |
||
Other | |||
RF
Connector IF Connector 10 MHz Connectors Connector, Alarm/Remote Size Power |
Type F (female, 75 ohms) BNC (female, 75 ohms) BNC (female, 75 ohms) (option -E) DB9 (female) - NO or NC contact closure on Alarm 19 inch 1RU standard chassis, 1.75"H X 16.0"D 90-260 VAC, 47-63 Hz, 60W max |
||
Options | |||
-E -H -V -L -Q -T |
External 10MHz ref input and output w/ RF insertion High Stability (±0.01 ppm) internal reference SSPB Voltage +24 VDC, 2.5 Amps with readout of current LNB +24 VDC, 0.4 Amps with readout of current RS485 Remote Interface Temperature Sensor |
*+10 to +40 degrees C; Specifications subject to change without notice
