2017-02 L-Band Up/Downconverter


The 2017-02 L-band Up/Downconverter converts 70 MHz to 950-2150 MHz (Up) and 950-2150 MHz to 70 MHz (Down) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm for up and downconverters (red), remote operation (yellow), and Upconverter mute (yellow). Gain is manually controlled over a –10 to +30 dB range for the upconverter and over a 0 to +50 dB range for the downconverter as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and the optional external reference input and output, and Type F female for RF. LNB or SSPB +24 VDC and 10 MHz reference can be inserted on the RF lines as added options. A high stability (±0.01ppm) option is also available. The unit is powered by a 90-260 VAC power supply and housed in a 1.75” X 19“ X 16” rack mount chassis.


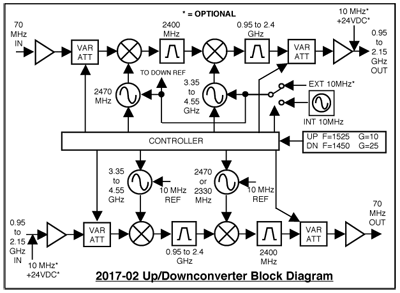

 2017-02 L-Band Up/Downconverter Front Panel

Equipment Specifications*


UPCONVERTER DOWNCONVERTER
RF Characteristics (OUT) RF Characteristics (IN)
Impedance/RL
Frequency
Output Level
Output 1dB comp		 75 ohms/10dB
950 to 2150 MHz
0 to -20 dBm
+5 dBm		 Impedance/RL
Frequency
Noise Figure, max.
Input Level
Input 1dB comp		 75 ohms/10dB
950 to 2150 MHz
15 dB @ max gain
-20 to -70 dBm
-15 dBm @ 0 dB gain
IF Characteristics (IN) IF Characteristics (OUT)
Impedance/RL
Frequency
Input Level		 75 ohms/18dB
70 ± 18 MHz
-40 to -10 dBm		 Impedance/RL
Frequency
Output Level
Output 1 dB comp		 75 ohms/18dB
70 ± 18 MHz
-25 to -15 dBm
-5 dBm
Channel Characteristics Channel Characteristics
Gain (adjustable)
Frequency Sense		 -10.0 to 30.0 dB
Non-inverting		 Gain (adjustable)
Freq Sense (selectable)		 0 to 50 dB
Non-inverting or inverting
UPCONVERTER AND DOWNCONVERTER
Channel Characteristics
Frequency Response
Group Delay, max
Spurious Response		 ±1.5 dB, entire band; ±0.5 dB, 36 MHz BW
3 ns, 30 MHz, 5 ns, 36 MHz BW
< -50 dBc, in band
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise (dBC/Hz)
10 MHz Level (In or Out)		 ±1.0 ppm max over temp (± 0.01 ppm option -H) internal reference
1.0 MHz (as low as 1 kHz steps available)
< -70 @ 0.1kHz, 1 kHz; < -80 @ 10 kHz; < -90 @ 100kHz; < -100 @ 1MHz
0 dBm, ±3 dB, 75 ohms (option -E)
Controls/Indicators
Frequency Selection
Gain Selection
Alarm
DC Power
Mute
Remote		 Direct readout LCD; push button switches or remote selection
Direct readout LCD; push button switches or remote selection
Red LED
Green LED
Yellow LED
Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Other
RF Connector
IF Connector
10 MHz Connectors
Connector, Alarm/Remote
Size
Power		 Type F (female, 75 ohms)
BNC (female, 75 ohms)
BNC (female, 75 ohms) (option -E)
DB9 (female) - NO or NC contact closure on Alarm
19 inch 1RU standard chassis, 1.75"H X 16.0"D
90-260 VAC, 47-63 Hz, 60W max
Options
-E
-H
-V
-L
-Q
-T		 External 10MHz ref input and output w/ RF insertion
High Stability (±0.01 ppm) internal reference
SSPB Voltage +24 VDC, 2.5 Amps with readout of current
LNB +24 VDC, 0.4 Amps with readout of current
RS485 Remote Interface
Temperature Sensor

*+10 to +40 degrees C; Specifications subject to change without notice
