2017-03A Up/Downconverter, 950 - 1525 MHz
 .PDF Data Sheet (40k)     .PDF Manual (220k)

The 2017-03 L-band Up/Downconverter converts 70 MHz to 950-1525 MHz (Up) and 950-1525 MHz to 70 MHz (Down) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm for up and downconverters (red), remote operation (yellow), and Upconverter mute (yellow). Gain is 0 dB ± 1.5 dB for the upconverter and manually controlled over a 0 to +50 dB range for the downconverter as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and the optional external reference input and output, and Type F female for RF. LNB or SSPB +24 VDC and 10 MHz reference can be inserted on the RF lines as added options. A high stability (±0.01ppm) option is also available. The unit is powered by a 90-260 VAC power supply and housed in a 1.75” X 19“ X 16” rack mount chassis.


Front Panel

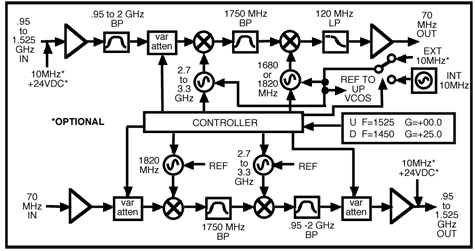

Block Diagram

Equipment Specifications*
UPCONVERTER
DOWNCONVERTER
RF Characteristics (OUT) RF Characteristics (IN)
Impedance/RL 75 ohms/12dB Impedance/RL 75 ohms/12dB
Frequency 950 to 1525 MHz Frequency 950 to 1525 MHz
Output Level -45 to -15 dBm Noise Figure, max. 15 dB @ max gain
Output 1 dB comp. +5 dBm Input Level -45 to -5 dBm
Input 1dB comp +5 dBm
IF Characteristics (IN) IF Characteristics (OUT)
Impedance/RL 75 ohms/18dB Impedance/RL 75 ohms/18dB
Frequency 70 ± 18 MHz Frequency 70 ± 18 MHz
Input Level -45 to -15 dBm Output Level -20 to 0 dBm
Output 1dB comp. +10 dBm
Channel Characteristics Channel Characteristics
Gain range (adjustable) 0 dB ± 1.5 dB Gain range (adjustable) 0 to +50 dB
Frequency Sense Non-inverting Freq Sense (selectable) Non-inverting/Inverting
UPCONVERTER AND DOWNCONVERTER
Channel Characteristics
Frequency Response ±1.5 dB, entire band; ±0.5 dB, 36 MHz BW
Group Delay, max 0.01 ns/MHz2 parabolic; 0.03 ns/MHz linear; 1 ns ripple
Spurious Response < -50 dBc, in band
Synthesizer Characteristics
Frequency Accuracy ±1.0 ppm max over temp (±0.01 ppm option -H) internal ref
Frequency Step 1.0 MHz minimum
Phase Noise (dBC/Hz) < -70 @ 100Hz, 1.0kHz; < -80 @ 10kHz; < -90 @ 100kHz; < -100 @ 1MHz
10 MHz Level (In or Out) 3 dBm ±3 dB, 75 ohms (option -E)
Controls/Indicators
Frequency Selection Direct readout LCD; push button switches or remote selection
Gain Selection Direct readout LCD; push button switches or remote selection
Alarm (Up/Down) Red LED
Power Green LED
Remote Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Mute (Up only) Yellow LED
Other
RF Connectors Type F (female)
IF Connectors BNC (female)
10 MHz Connectors BNC (female) (option -E)
Alarm/Remote Conn. DB9 - NO or NC contact closure on Alarm
Size 19 inch 1RU standard chassis, 1.75"H X 16.0"D
Power 90-260 VAC, 47-63 Hz, 45W max
Options
-E External 10MHz ref input and output, with RF insertion
-H High Stability (±0.01 ppm) internal reference
-L LNB +24 VDC, 0.5 Amps with readout of current
-V SSPB +24 VDC, 2.5 Amps with readout of current
-Q RS485 Remote Interface
-T Temperature Sensor
-Z Attenuator 0.1 dB steps (Upconverter only)
Connector options Contact

*+10 to +40 degrees C; Specifications subject to change without notice
