2015-02, -03 Agile L-Band Upconverter

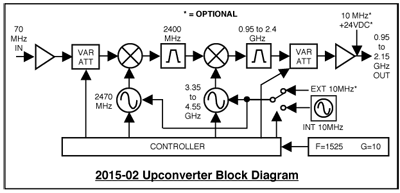

The 2015 L-band Upconverter converts 70 ± 18 MHz to 950 to 2150 MHz (2015-02) or 950 to 1525 MHz (2015-03) in 1 MHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-function push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), remote operation (yellow) or the TX carrier is muted (red). Variable attenuators for the IF input and output provide a gain range of -10 to +30 dB as adjusted by the front panel multi-function push-button switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and the optional external reference input and output, and Type F female for the RF output. SSPB +24 VDC, 2.5 Amps and 10 MHz reference can be inserted on the RF line as added options. The 10 MHz option also includes a 10 MHz output connector which contains either the internal or external 10 MHz reference signal. A high stability (±0.01ppm) option is also available. The unit is powered by a 90-260 VAC power supply, and housed in a 1 3/4” X 19 “ X 16” rack mount chassis.


2015 Agile L-Band Upconverter Front Panel

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Level, max
75 ohms/18dB
70 ± 18 MHz
-40 to -10 dBm
Output Characteristics
Impedance/RL
Frequency (see models)
Level
Output 1dB
75 ohms/10dB
up to 2150 MHz
0 to -20 dBm
+5 dBm
Channel Characteristics
Gain range (adjustable)
Spurious Response
Frequency Response
Group Delay, max
Frequency Sense
-10 dB to +30 dB
< -50 dBC
±1.5dB, in band; ±0.5dB, 36 MHz BW
3 ns, 30 MHz; 5 ns, 36 MHz BW
Non-inverting
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise (dBC/Hz)
10 MHz Level (In or Out)
±1.0 ppm max over temp (±0.01 ppm option -H), internal ref; ext ref optional
1.0 MHz (as low as 1 kHz available)
< -70 @ 100Hz, 1.0kHz; < -80 @ 10kHz; < -90 @ 100kHz; < -100 @ 1MHz
0 dBm, ±3 dB, 75 ohms (option -E)
Controls/Indicators
Frequency Selection
Gain Selection
Alarm
DC Power
Remote
Mute
Direct readout LCD; push button switches or remote selection
Direct readout LCD; push button switches or remote selection
Red LED
Green LED
Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Yellow LED
Other
RF Connector
IF Connector
10 MHz Connectors
Connector, Alarm, Remote
Size
Power
Type F, female
BNC, female
BNC, female (option -E)
DB9 - NO or NC contact closure on Alarm
19 inch 1RU standard chassis, 1.75"H X 16.0"D
90-260 VAC, 47-63 Hz, 45W max
Models/Options
2015-02
2015-03
-E
-H
-V
-Q
-T
-Z
950-2150 MHz output, 70 MHz input
950-1525 MHz output, 70 MHz input
External 10MHz ref input and output, 10MHz ref can be inserted on the RF out
High Stability (±0.01 ppm) internal reference
SSPB +24 VDC, 2.5 Amps with readout of current
RS485 Remote Interface
Temperature Sensor
Attenuator 0.1 dB steps

*+10 to +40 degrees C; Specifications subject to change without notice
