2015-140 Upconverter, 13.75 - 14.75 GHz

The 2015-140 Upconverter converts 70 ± 18 MHz to 13.75 to 14.75 GHz in 125 kHz steps with low group delay and flat frequency response. Synthesized local oscillators (LO) provide very low phase noise, ± 0.01 ppm stability frequency selection. Push button switches select the RF frequency, gain, and other parameters. Front panel LEDs provide indication of PLL alarm (red), Remote operation (yellow) or the TX carrier is Muted (yellow). Variable attenuators for the IF input and RF output provide a gain range of 0 to +30 dB as adjusted by the front panel pushbutton switches. Remote operation allows selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD display. Connectors are BNC female for IF and external reference input and SMA female for the RF output. Powered by a 90-260 VAC power supply; 1 3/4” X 19 “ X 16” rack mount chassis.


Front Panel

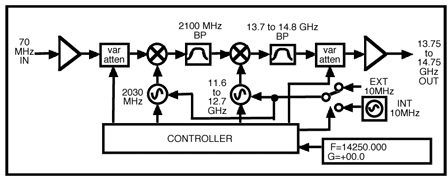

Block Diagram



Equipment Specifications*
Input Characteristics
Impedance/RL 75 ohms/18dB
Frequency 70 ± 18 MHz
Level, max -30 to -10 dBm
Output Characteristics
Impedance/RL 50 ohms/12dB
Frequency 13.75 to 14.75 GHz
Level -10 to -20 dBm
Output 1dB comp. +5 dBm
Channel Characteristics
Gain range (adjustable) 0 dB to +30 dB
Spurious Response < -50 dBC
Frequency Response ±1.0dB, in band; ±0.5dB, 36 MHz BW
Group Delay, max 0.01 ns/MHz2 parabolic; 0.03 ns/MHz linear; 1 ns ripple
Frequency Sense Non-inverting
Synthesizer Characteristics
Frequency Accuracy ±0.01 ppm internal ref
Frequency Step 125 kHz, min
Phase Noise (dBC/Hz) < -70 @ 100Hz; < -80 @ 1kHz; < -90 @ 10kHz; < -95 @ 100kHz; < -105 @ 1MHz
10 MHz Level (In or Out) 3 dBm, ±3 dB, 75 ohms
Controls/Indicators
Frequency Selection Direct readout LCD; push button switches or remote selection
Gain Selection Direct readout LCD; push button switches or remote selection
Alarm Red LED
Power Green LED
Remote Yellow LED; RS232C, 9600 baud (RS485, option -Q)
Mute Yellow LED
Other
RF Connector SMA (female)
IF Connector BNC (female)
10 MHz Connectors BNC (female)
Alarm/Remote Conn. DB9 - NO or NC contact closure on Alarm
Size 19 inch 1RU standard chassis, 1.75"H X 16.0"D
Power 90-260 VAC, 47-63 Hz, 45W max
Options
-Q RS485 Remote Interface
Connector options

*+10 to +40 degrees C; Specifications subject to change without notice
