2006-03, -04 Satellite Test Upconverter |
||
The 2006-03, -04 converts a 70 or 140 MHz signal to L-Band with a 1130 MHz LO frequency (-03) or to an L-Band at a frequency specified at order (-04). The IF input goes to the attenuator, mixer and output amplifier providing -5 dB gain. DC power is provided by the receiver LNB voltage. Connectors are BNC female for the IF input and F, female for the RF output. An external power supply (option -P) is available. |

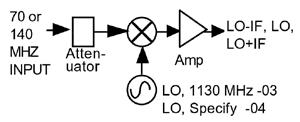

2006 Test Upconverter Block
Diagram
Equipment Specifications*
Input Characteristics | |
Impedance/RL Frequency Level, max Input 1dB Comp |
75 ohms/15dB 70 or 140 MHz left -10 to -20 dBm 0 dBm |
Output Characteristics | |
Impedance/RL Frequency, LO Frequency, Ku Frequency, C Level |
75 ohms/12dB 1130 MHz (-03); 1020 - 1520 MHz, fixed (-04) LO + 70MHz, + 140MHz LO - 70MHz, - 140MHz -15 dBm, with -10 dBm in |
Channel Characteristics | |
Gain Spurious Response Frequency Response |
-5dB ±3dB NA; output not filtered ±0.5dB, any 10 MHz incr. |
Synthesizer Characteristics | |
Frequency Accuracy Frequency Step Phase Noise(dBC/Hz) |
±25kHz max NONE - Fixed tuned <= -80, 10kHz; <= -90, 100kHz; <= -100, 1MHz |
Controls/Indicators | |
DC Power | Green LED |
Other | |
RF
Connectors IF Connectors Size, Power AC Power (-P) |
type F, female BNC, female 3.4"W X 1.7"H X 4.0"D +14 to +20 VDC, 150mA on RF In 120 ± 10% VAC, 60Hz, 10W max, wall mount power supply (optional) |
*+10 to +40 degrees C; Specifications subject to change without notice
