2005-02, -03 Agile Satellite Test Upconverter


The 2005 Test Upconverter converts a 70 or 140 MHz IF signal to 950 to 2050 MHz (-02) or 950 to 1450 (-03) in 1 MHz steps using a synthesized 1020 - 2120 MHz (-02) or 800 - 1600 MHz (-03) local oscillator (LO) signal. Four BCD switches control the synthesized LO and the output frequency. A green LED lights when DC power is applied. The mixer output is applied to the output attenuator providing a -30dB or -10dB gain. Power is provided by the LNB voltage from the receiver under test and connectors are BNC female for the 70 MHz input and F, female for the RF output. An external power supply (option -P) and rack mounting (option -R) is available

.

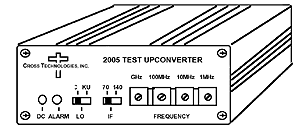

 2005 Agile Test Upconverter Front


 2005 Agile Test Upconverter Rear

Equipment Specifications*


Input Characteristics
Impedance/RL
Frequency
Level, max
Input 1dB/3rd Order		 75 ohms/12dB
70 or 140 MHz left
-10 to -40 dBm
0/+10 dBm (low gain); -20/-10 dBm (high gain)
Output Characteristics
Impedance/RL
Frequency		 75 ohms/8dB
0.95-2.05 GHz (-02), 0.95-1.45 GHz (-03)
Channel Characteristics
Gain
Spurious Response
Frequency Response		 -30dB ±3dB (low gain); -10dB ±3dB (high gain)
NA; output not filtered
±4dB, 0.95-2.05 MHz; ±0.5dB, any 10 MHz incr.
Synthesizer Characteristics
Frequency Accuracy
Frequency Step
Phase Noise(dBC/Hz)		 ±100kHz max
1.0 MHz min
<= -80, 10 kHz; <= -90, 100 kHz; <= -100, 1 MHz
Controls/Indicators
Frequency Selection
Output Level
PLL Alarm
Remote		 Direct readout BCD switches
Toggle switch for -30(low), -10(high) dB gain
Red LED
Yellow LED
Other
RF Connectors
IF Connectors
Size, Bench Top
Size, Rack Mount (-R)
Power
AC Power (-P)		 type F, female
BNC, female
4.7"W X 1.75"H X 6.5"D
19 inch standard chassis, 1.75"H X 7"D (optional)
+14 to +20 VDC, 180mA on RF In
120 ± 10% VAC, 60Hz, 10W max, wall mount power supply (optional)

*+10 to +40 degrees C; Specifications subject to change without notice
