1794-XX Service Channel Filter/Combiner

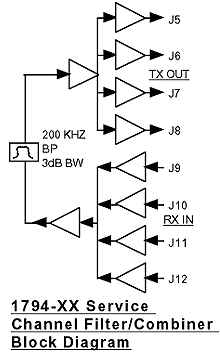

The 1794-XX Service Channel Filter/Combiner provides combining, filtering, and splitting of a service channel subcarrier signal. The transmit output has four separate outputs for driving separate sources. Conversely, the receive input has four separate inputs for multiple source applications. Frequencies are factory set and can be 5.40, 5.65, 7.045, 7.5, 8.3, 8.59, 8.85, 9.023, or 9.25 MHz. Line power can be specified as 115 VAC, 230 VAC, -24 VDC, or -48 VDC.




 1794-XX Service Channel Front

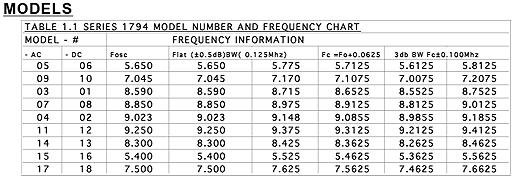

Equipment Specifications*


Receive Input to Transit End Output
Frequency
Bandwidth
Frequency Response
Gain
Connectors		 5.4, 5.65, 7.045, 7.5, 8.3, 8.59, 8.85, 9.023, 9.25 MHz
110kHz Nominal
±0.5dB, over the 110kHz band
0, ±0.5dB
BNC Female
Other
Mechanical
Power AC
Power DC		 19 inch standard chassis; 1.75"H X 13"D, 8-3/4 lbs (4kg)
105 - 130 or 210 - 260 VAC, 47 - 63 Hz, 15W
-21 to -32 or -42 to -56 VDC, 100 ma Typical, 150 ma Max

*+10 to +40 degrees C; 2000m max elevation; 80% max humidity; Specifications subject to change without notice
