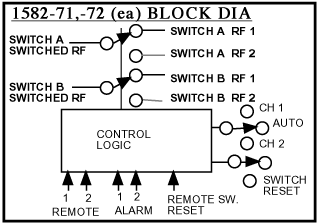

1582-71, -72 RF Switches |
||
The 1582-71 RF Switch provides Auto, Manual, or Remote relay switching between CH1 and CH2 RF signals. Alarm conditions are either contact closure to ground or an open (selectable). Switching logic can be selected as follows:
When power is applied with no alarms, CH1 is selected. On power loss CH1 is the selected. The Manual Select switch and contact closures to Remote Select pins (when in Auto), select CH1 or CH2 independent of alarms. LEDs indicate alarm and switch conditions for CH1 and CH2, REMOTE or MANUAL operation, and power on. RF connectors are BNC, female. Contact closure I/O’s are via barrier strip. Dual power supplies provide redundant power. The 1582-72 RF Switch has two independent switches (A and B) in one 1 3/4” chassis. |

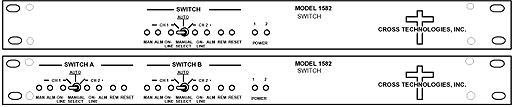

1582-71, -72 RF Switch Front
Panel
Equipment Specifications*
Switch Characteristics | |
Impedance Type Isolation Switch time Insertion Loss Configuration |
75 ohms (no sw
termination) RF relay >65dB DC to 10 MHz, >50dB to 500 MHz, >40dB to 1.5 GHz <= 10ms <= 1dB, <0.5dB typ (to 500 MHz); <= 2dB, <1dB typ (to 1.5 GHz) DPDT |
Controls/Indicators | |
Manual Select LEDs |
Switches between
manual or automatic operation CH1, CH2 ON; ALARM CH1, CH2; POWER CH1, CH2; MANUAL; REMOTE |
Other | |
Connector, ALARM Connector, RF Mechanical Power |
Barrier Strip BNC, female 19" standard chassis; 1.75"H X 11.5"D 90-260 VAC, 47-60Hz, 30W; Redundant power supplies |
*+10 to +40 degrees C; 2000m max elevation; 80% humidity; Specifications subject to change without notice
