582-10 Data Switch

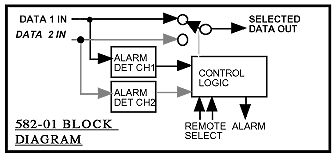

The 582-10 detects presence of data on a main (Data 1) and secondary (Data 2) data channel by detecting positive level transitions on both inputs. If no data is detected on the Data 1 channel for 1 to 9 minutes (adjustable in 1 minute increments), an alarm will occur causing the switch to transfer the Data 2 channel to the SELECTED DATA output. If the Data 2 channel also has an alarm, no switching will occur or switching can always be forced to the Data 2 channel. After switching to the Data 2 channel, when the Data 1 channel alarm clears the switch transfers data back to the Data 1 channel. Switching is accomplished using a relay. If power is removed from the 582-10, a jumper selects signal continuity from either the Data 1 or Data 2 channel to the SELECTED DATA output. The channels can be manually switched by closures to ground. The PC power supply provides power to the 582-10. External redundant DC can be used. The unit is housed on a 3/4 size PCI card.



582-10 Data Switch

Equipment Specifications*


Data Characteristics
Input/Output
Data Rate
Connector
RS232C
128 kB/s max
RJ45, female
Switch Characteristics
Type
Signal pin switched
Isolation
Switch time
Contact Resistance
Configuration
Switch after alarm
Relay
Pin 2
>40dB
<=10 ms
<=10 ohms, <1 ohm typl
SPDT
Settable for 0-9 min in 1 min increments
Controls
Remote Select Closures to GND select CH1 or CH2
Other
Mechanical
Power

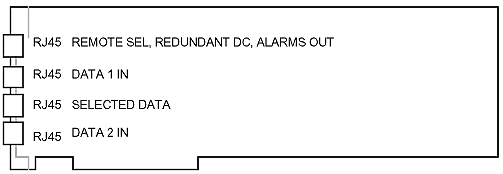

3/4 Length Standard PCI card; 4.2"H X 9.5"W
+12V, 200ma; -12V, 100ma

*+10 to +40 degrees C; Specifications subject to change without notice
